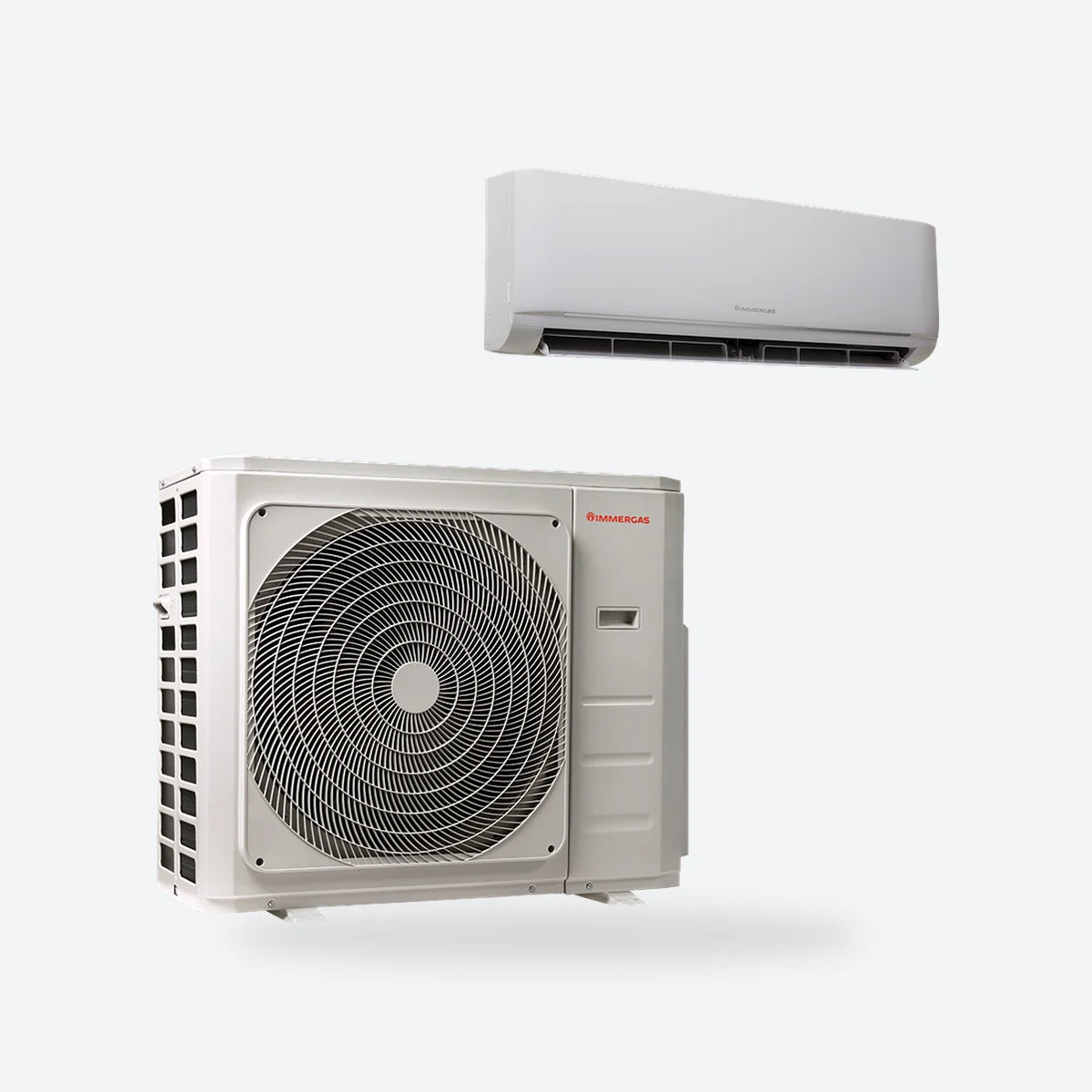

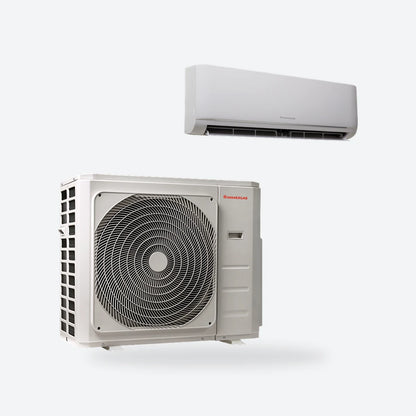

• Alpha UE Multi multi-split pack: a white outdoor unit with one large fan and a white Gotha wall-mounted indoor unit.

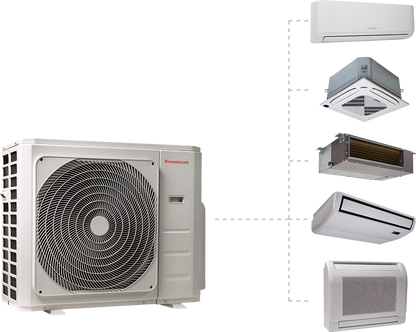

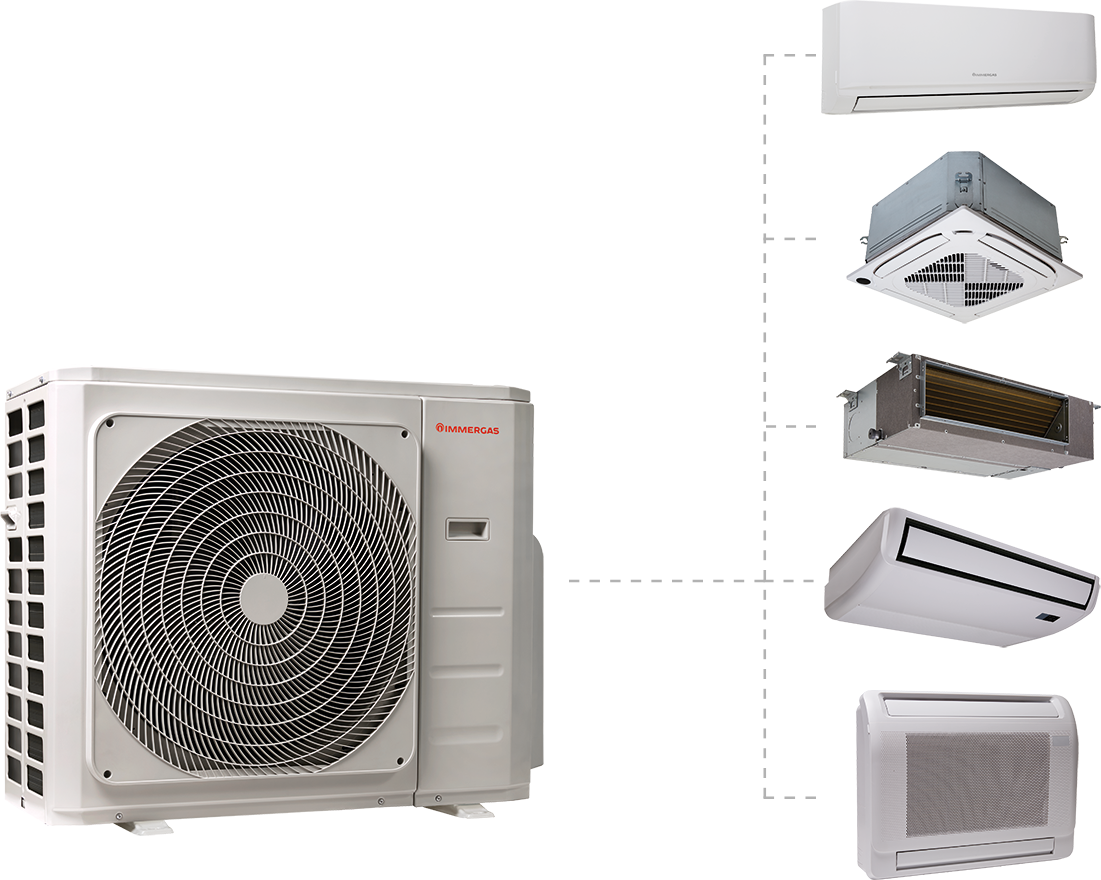

  • Alpha UE Multi multi-split outdoor unit
1 2

Alpha

Alpha 2-Room Multi-Split Air Conditioning System (UE Multi)

Alpha 2-Room Multi-Split Air Conditioning System (UE Multi)

£1,790.00
£1,790.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Changed your mind? You pay the return postage. Faulty, damaged or wrong items are on us.

Purchase option

Supply only. Installation not included.

Must be fitted by an F-gas certified company. After you order, we'll email a short form for your installer.

How this works

This system contains F-gas refrigerant and must be installed by an F-gas certified company. By law we can only supply it once your installer has confirmed in writing that they will fit it. After you order, we'll email you a short form for your installer to complete. We won't order or dispatch your system until we've checked it. If we don't get the form within 14 days, we'll cancel your order and refund you in full.

Get a fitted quote

Want us to fit it instead? We'll quote separately.

Fitted for you

Send us photos, a short video walk-round and your room sizes, and we'll come back with a quote. If what we find on the day doesn't match your photos, we'll agree any change with you before we start, and you can cancel instead.

  • F-Gas certified: Refcom REF1023722, Kinergy Solutions Ltd
  • 20+ years in the trade

Availability: made to order. We'll confirm availability and your delivery date within 2 working days of your order, before we order your kit; we'll agree a fitting date with you after you accept the quote.

How buying with installation works  ·  Get a quote from photos

Alpha 2-room multi-split system: UE Multi 18 Dual with 2 Gotha 9 wall units

Pre-order. We'll confirm availability and your delivery date within 2 working days, before we order your kit. If the date doesn't suit you, we'll refund you in full.

Equipment pack for 2 rooms from one outdoor unit. The UE Multi 18 Dual outdoor unit is rated at 5.28 kW nominal cooling and 5.57 kW nominal heating, and runs up to 2 indoor units on R32 refrigerant. This pack pairs it with 2 Gotha 9 wall units (2.64 kW cooling each), each with its Wi-Fi kit. Alpha is part of the Immergas Group, so you'll see Immergas on some documents and labels. Supplied as equipment only for an F-gas certified company.

What's in the pack

  • 1 x UE Multi 18 Dual outdoor unit (3.035043)
  • 2 x UI Gotha 9 wall-mounted indoor unit, 2.64 kW cooling / 2.93 kW heating (3.035039), each with infrared remote and Wi-Fi kit

Two Gotha 9s is one of the listed 2-unit combinations for this outdoor unit in the Immergas manual.

Key features

  • One outdoor unit runs every room in the pack, each room with its own control
  • Heating and cooling from an inverter heat pump
  • Wi-Fi kit for app control (CLIMAsmart) included as standard with each Gotha indoor unit
  • Infrared remote control with each indoor unit
  • Air ioniser filter as standard on each indoor unit
  • R32 refrigerant

Specifications

Outdoor unit UE Multi 18 Dual (3.035043)
Indoor units 2 x UI Gotha 9 (3.035039)
Cooling capacity, outdoor unit (nominal) 5.28 kW / 18,000 Btu/h (range 2.05 to 5.28 kW)
Heating capacity, outdoor unit (nominal) 5.57 kW / 19,000 Btu/h (range 2.35 to 5.57 kW)
EER / COP (rated, EN 14511) 3.23 / 3.71
Maximum indoor units 2
Gotha 9 capacity (cooling / heating) 2.64 / 2.93 kW
Gotha 9 indoor sound pressure (max / med / min) 37 / 31 / 22 dB(A)
Outdoor sound pressure / sound power 54 / 65 dB(A)
Refrigerant R32 (GWP 675), 1.25 kg factory charge
Outdoor unit dimensions (H x W x D) 554 x 805 x 330 mm
Outdoor unit weight 35.0 kg
Gotha 9 dimensions (H x W x D) / weight 296 x 805 x 205 mm / 8.7 kg
Pipe lengths Up to 40 m total, 25 m to any one indoor unit
Maximum height difference 15 m outdoor to indoor; 10 m between indoor units
Outdoor operating range Cooling -15°C to +50°C; heating -15°C to +24°C
Power supply Single phase, 220-240 V, 50 Hz
Wi-Fi Wi-Fi kit included with each Gotha indoor unit (CLIMAsmart app)

Specifications from the Alpha UK air-to-air brochure and the Immergas Gotha/Thor/Multi technical manual (S267-002 GB). Nominal data to EN 14511 (cooling 27/19°C indoor, 35/24°C outdoor; heating 20/15°C indoor, 7/6°C outdoor). Alpha notes the energy label depends on the indoor unit combination.

Two ways to buy

  • Supply only: UK-wide, made to order, and we'll confirm availability and your delivery date within 2 working days, before we order your kit. Equipment only; installation isn't included in this checkout. Want it fitted? Email sales@climatecart.co.uk with your room sizes and a few photos for an installed price, anywhere in the UK. Your fitted quote includes travel. Equipment is supplied for your F-gas certified company.
  • Fitted: We can arrange fitting anywhere in the UK. You do not pay for installation at checkout.

F-Gas certified company, Kinergy Solutions Ltd, Refcom REF1023722

Lead time: we'll confirm availability and your delivery date within 2 working days of your order, before we order your kit. If that date doesn't work for you, we'll refund you in full.

For availability and sizing, email sales@climatecart.co.uk or WhatsApp 07427 342975.

Supply-only scope

This listing is for the equipment described above. Installation, commissioning, pipework, electrical work and other sundries are not included unless explicitly stated in the listing title or kit notes. Split systems must be installed and commissioned by an F-gas certified company.

Manufacturer warranty: terms are set by Alpha and can depend on the installer and on registering the product. Please confirm cover with your installer, or ask us before ordering.
