Alpha 5-Room Multi-Split Air Conditioning Pack (UE Multi 42 Penta, 12.3 kW)
Alpha 5-Room Multi-Split Air Conditioning Pack (UE Multi 42 Penta, 12.3 kW)
Changed your mind? You pay the return postage. Faulty, damaged or wrong items are on us.
Couldn't load pickup availability
Want us to fit it instead? We'll quote separately.
Fitted for you
Send us photos, a short video walk-round and your room sizes, and we'll come back with a quote. If what we find on the day doesn't match your photos, we'll agree any change with you before we start, and you can cancel instead.
- F-Gas certified: Refcom REF1023722, Kinergy Solutions Ltd
- 20+ years in the trade
Availability: made to order. We'll confirm availability and your delivery date within 2 working days of your order, before we order your kit; we'll agree a fitting date with you after you accept the quote.
How buying with installation works · Get a quote from photos

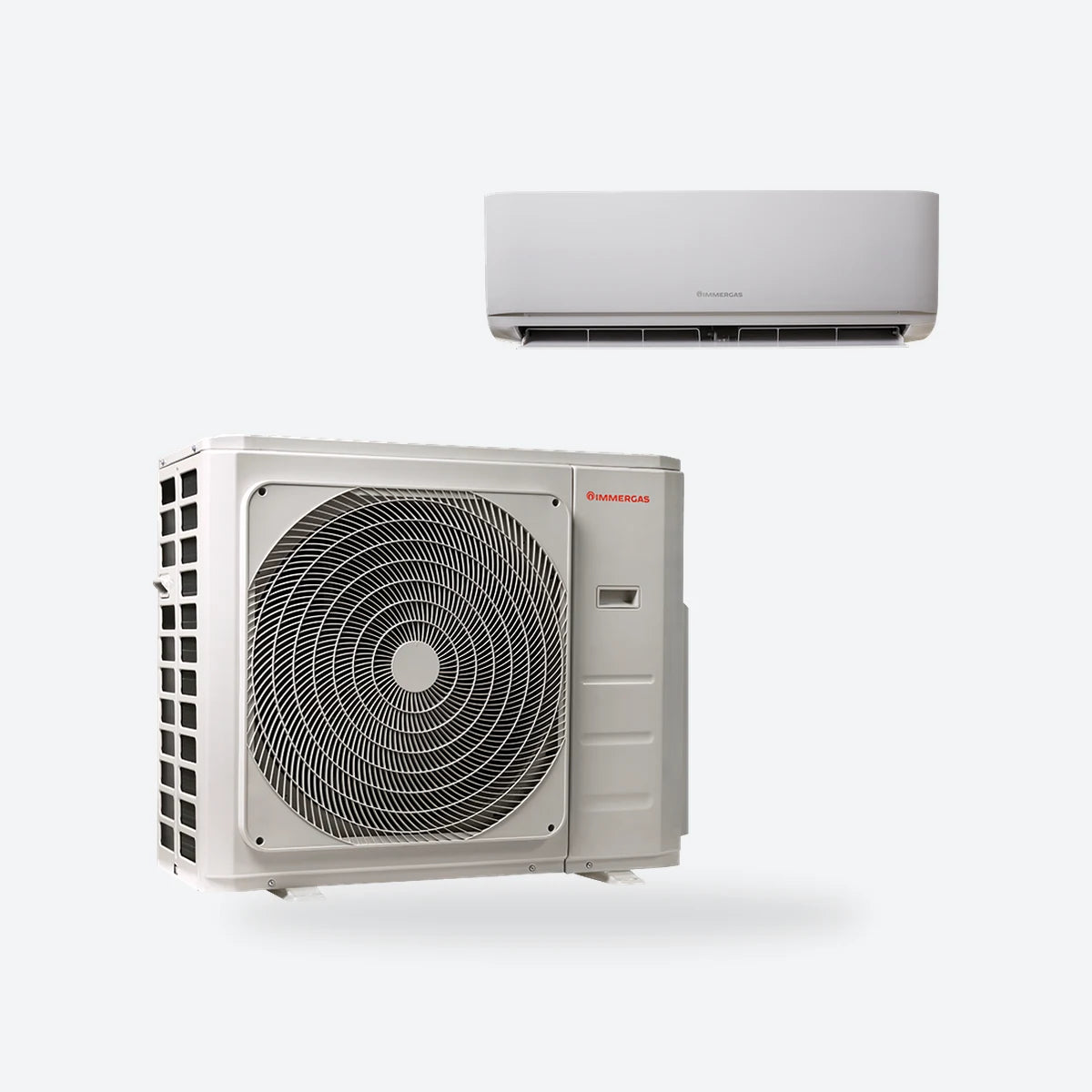

Alpha UE Multi 42 Penta 5-room multi-split pack
Pre-order. We'll confirm your delivery date before we order your kit.
Equipment pack for five rooms from one outdoor unit. The UE Multi 42 Penta outdoor unit is rated at 42,000 Btu/h, about 12.3 kW nominal in cooling and heating, and runs up to five indoor units on R32 refrigerant. This pack pairs it with four Thor 9 wall units (about 2.6 kW each) and one Thor 12 (about 3.5 kW), each with its own Wi-Fi kit. Alpha is part of the Immergas Group, so you'll see Immergas names and part codes on the units and paperwork. Supplied as equipment only for an F-gas certified company.
What's in the pack

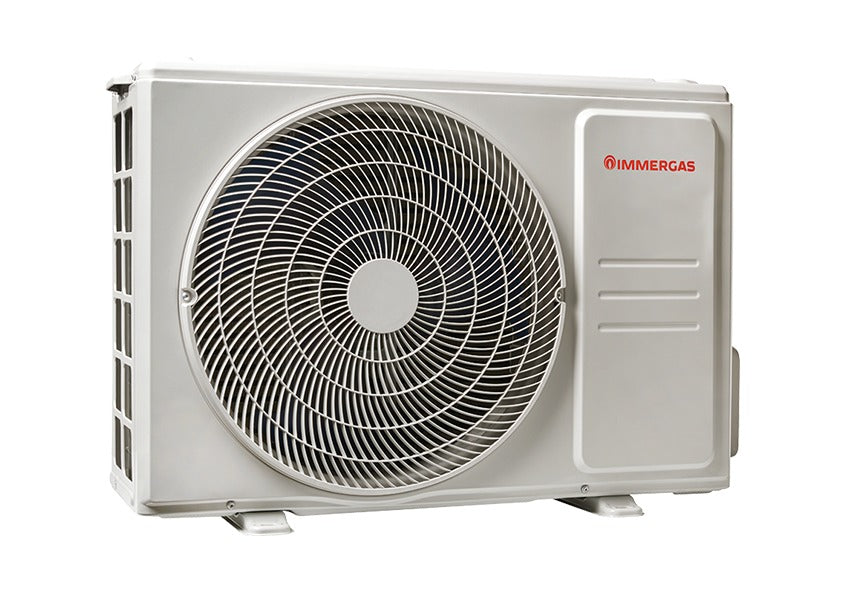

- 1 x UE Multi 42 Penta outdoor unit (3.035048)

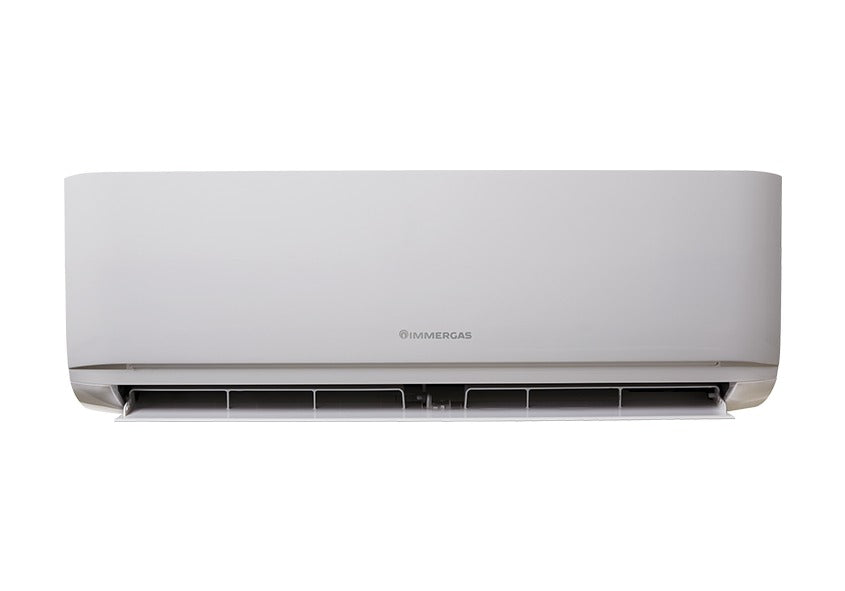

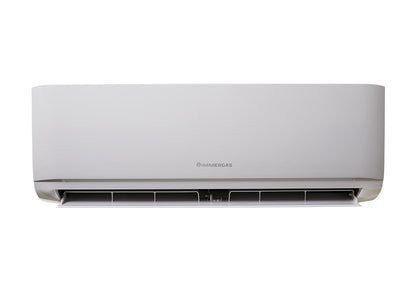

- 4 x Thor 9 wall-mounted indoor unit, 2.64 kW cooling / 2.93 kW heating (3.035031)
- 1 x Thor 12 wall-mounted indoor unit, 3.52 kW cooling / 3.81 kW heating (3.035033)
- 5 x Wi-Fi kit for Thor indoor units, for the CLIMAsmart app (3.035060)
- 1 x floor support kit (anti-vibration supports) for the outdoor unit (3.035409)
The five indoor units add up to more than 12.3 kW. That's normal for multi-split: the outdoor unit shares its output across the rooms that are running. Four Thor 9s plus one Thor 12 is one of the approved five-unit combinations for this outdoor unit.
Want it fitted? Fitted installs are quoted from photos as usual: email sales@climatecart.co.uk with your room sizes, a few photos and a short video walk-round.
Key features
- One outdoor unit for up to five rooms
- Heating and cooling from an inverter heat pump
- App control through CLIMAsmart, with the five Wi-Fi kits included

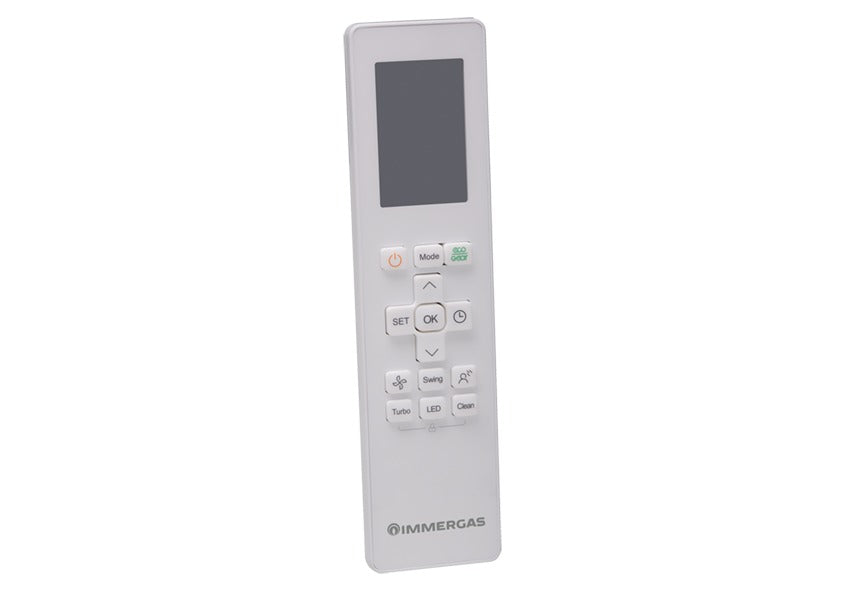

- Infrared remote control with each Thor indoor unit
- Breeze Away function on Thor to keep airflow off people
- Backlit pop-up display on the Thor indoor units
Specifications
| Outdoor unit | UE Multi 42 Penta (3.035048) |
|---|---|
| Indoor units | 4 x Thor 9 (3.035031), 1 x Thor 12 (3.035033) |
| Cooling capacity, outdoor unit (nominal) | 12.31 kW / 42,000 Btu/h (range 2.05 to 12.31 kW) |
| Heating capacity, outdoor unit (nominal) | 12.31 kW / 42,000 Btu/h (range 2.35 to 12.31 kW) |
| EER / COP (rated, EN 14511) | 3.24 / 3.73 |
| Maximum indoor units | 5 |
| Thor 9 capacity (cooling / heating) | 2.64 / 2.93 kW |
| Thor 12 capacity (cooling / heating) | 3.52 / 3.81 kW |
| Thor indoor sound pressure (max / med / min) | 37 / 32 / 22 dB(A), Thor 9 and Thor 12 |
| Outdoor sound pressure / sound power | 61.5 / 70 dB(A) |
| Refrigerant | R32 (GWP 675), 2.9 kg factory charge |
| Outdoor unit dimensions (H x W x D) | 810 x 946 x 410 mm |
| Outdoor unit weight | 74.1 kg |
| Thor 9 dimensions (H x W x D) / weight | 292 x 729 x 204 mm / 8.0 kg |
| Thor 12 dimensions (H x W x D) / weight | 296 x 805 x 205 mm / 8.7 kg |
| Pipe lengths | Up to 80 m total, 35 m to any one indoor unit |
| Maximum height difference | 15 m outdoor to indoor; 10 m between indoor units |
| Outdoor operating range | Cooling -15°C to +50°C; heating -15°C to +24°C |
| Power supply | Single phase, 220-240 V, 50 Hz |
| Wi-Fi | Wi-Fi kit included for each indoor unit (CLIMAsmart app) |
Specifications from the Immergas Gotha/Thor/Multi technical manual (S267-002 GB) and the Alpha UK air-to-air brochure. Nominal data to EN 14511 (cooling 27/19°C indoor, 35/24°C outdoor; heating 20/15°C indoor, 7/6°C outdoor). Alpha notes the energy label depends on the indoor unit combination.
Two ways to buy
- Supply only: Equipment only; installation isn't included in this checkout. Want it fitted? Email sales@climatecart.co.uk with your room sizes and a few photos for an installed price, anywhere in the UK. Your fitted quote includes travel. Equipment is supplied for your F-gas certified company.
- Fitted: We can arrange fitting anywhere in the UK. You do not pay for installation at checkout.
F-Gas certified company, Kinergy Solutions Ltd, Refcom REF1023722
Lead time: We'll confirm the date with you before we order. If that date doesn't work for you, we'll refund you in full.
For availability and sizing, email sales@climatecart.co.uk.
Supply-only scope
This listing is for the equipment described above. Installation, commissioning, pipework, electrical work and other sundries are not included unless explicitly stated in the listing title or kit notes. Split systems must be installed and commissioned by an F-gas certified company.
Manufacturer warranty: terms are set by Alpha and can depend on the installer and on registering the product. Please confirm cover with your installer, or ask us before ordering.
