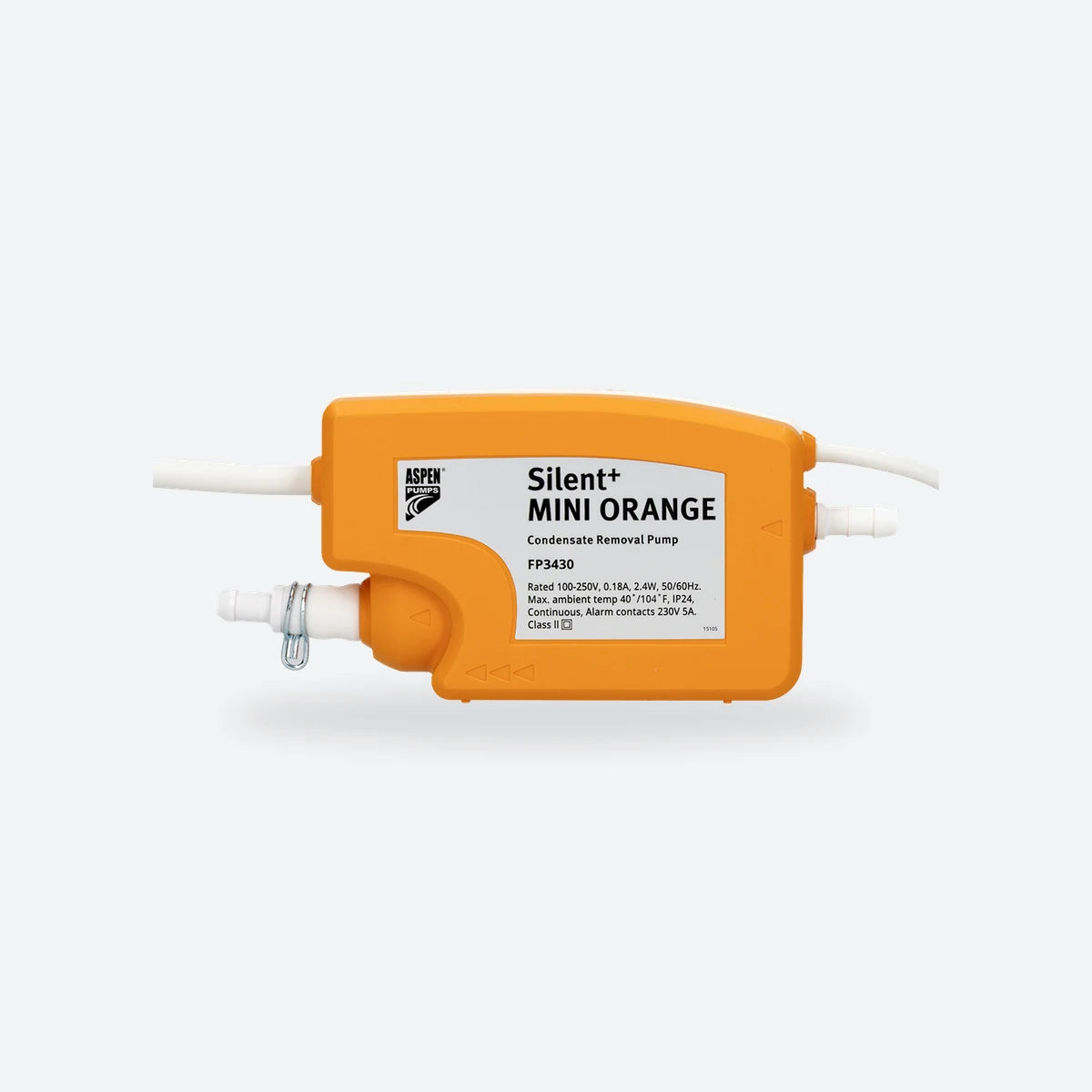

• Aspen Silent+ Mini Orange Gen 5 FP3430 condensate pump, front view

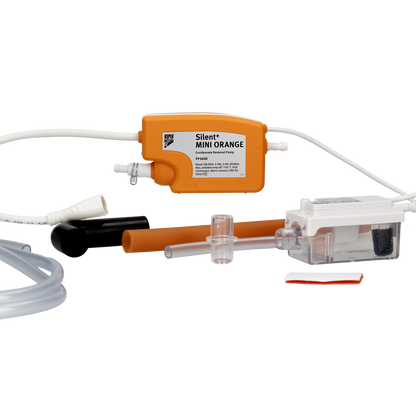

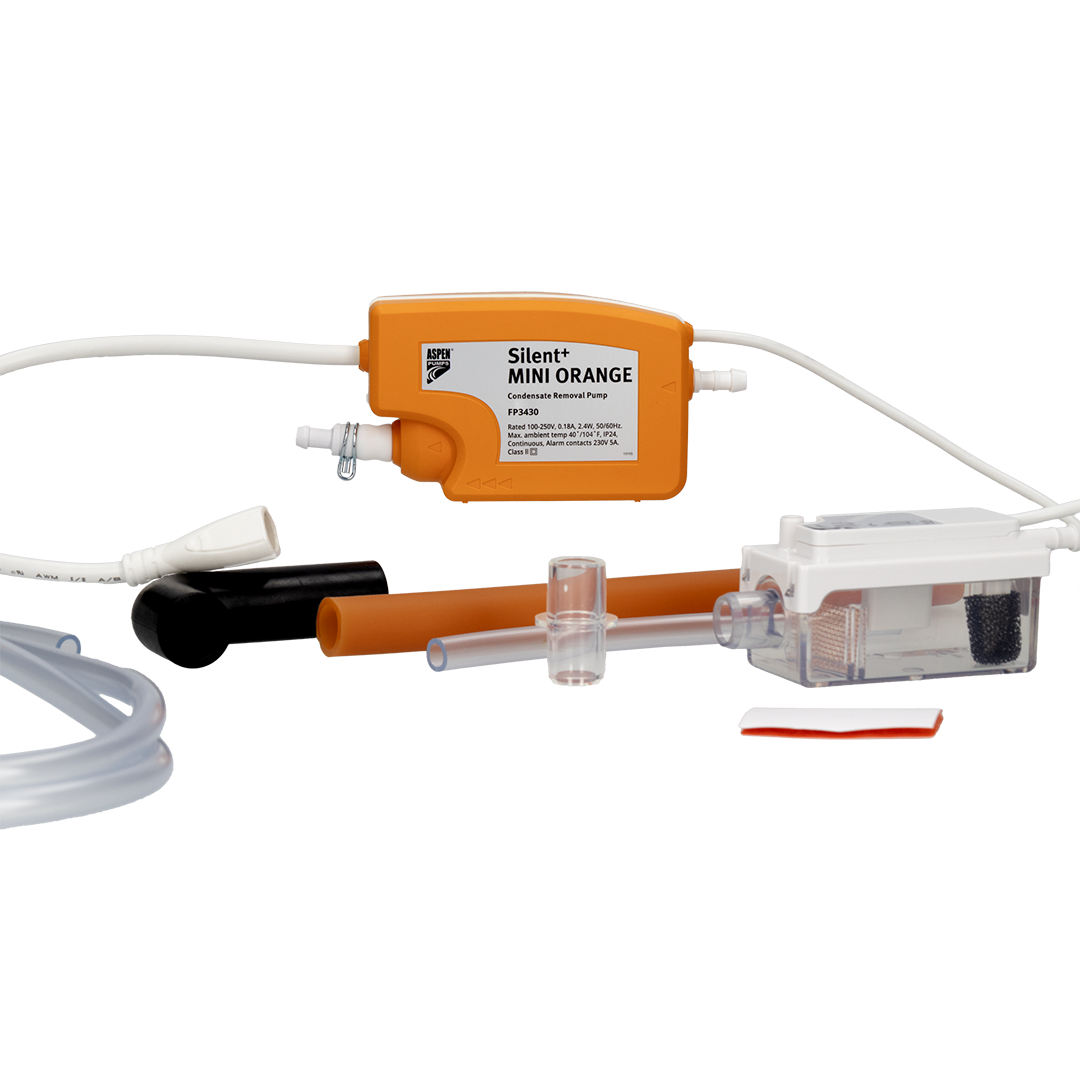

  • Aspen Silent+ Mini Orange FP3430 kit contents

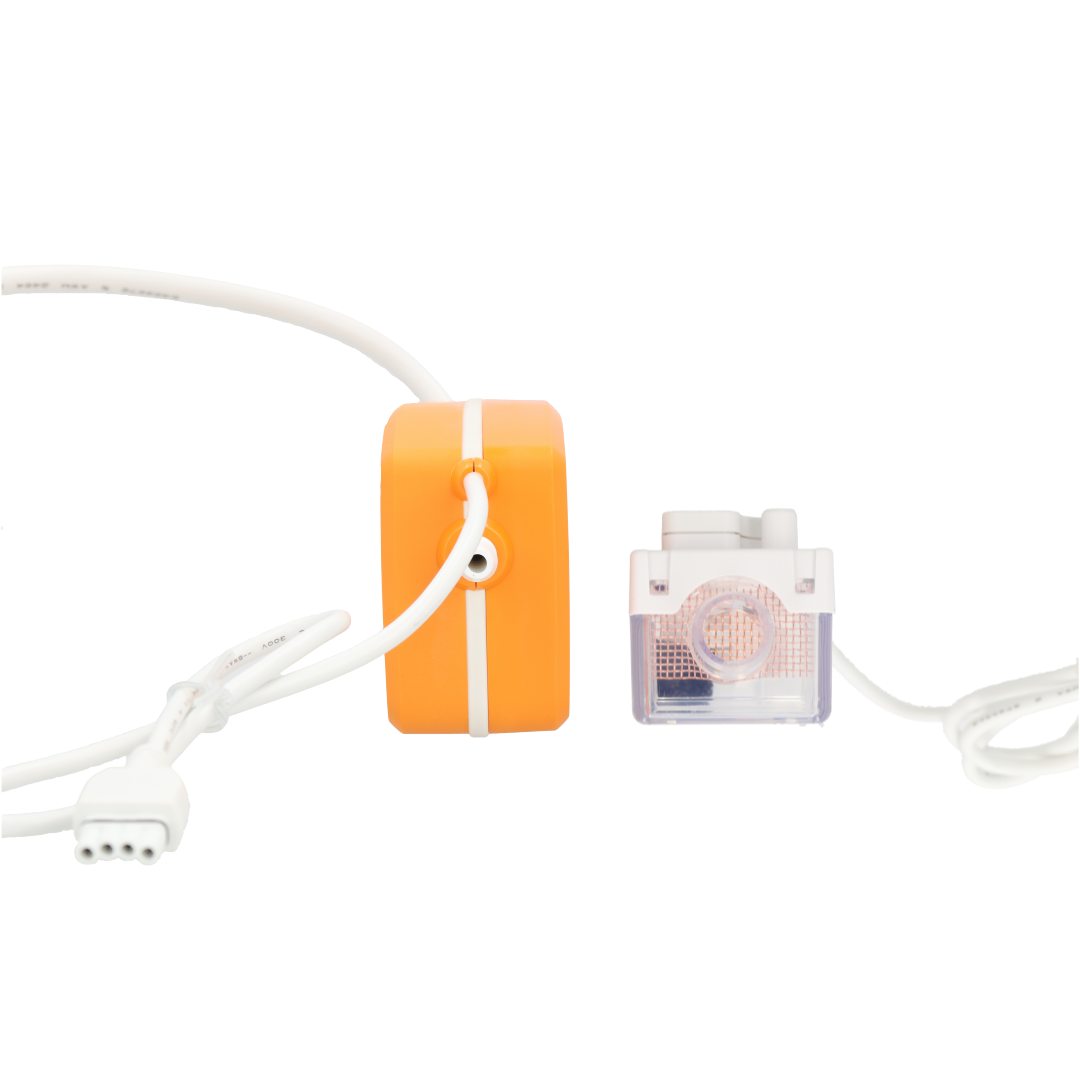

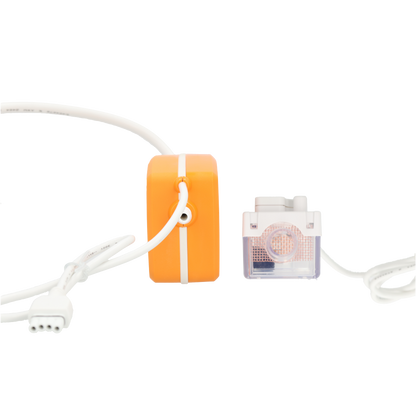

  • Aspen Silent+ Mini Orange FP3430, side view
1 3

Aspen Pumps

Aspen Silent+ Mini Orange Condensate Pump Gen 5 (FP3430)

Aspen Silent+ Mini Orange Condensate Pump Gen 5 (FP3430)

£123.00
£123.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Changed your mind? You pay the return postage. Faulty, damaged or wrong items are on us.

Supply only. Installation not included.
Get a fitted quote

Want it fitted? We'll quote for installation separately, based on your rooms and photos.

Fitted for you

Send us photos, a short video walk-round and your room sizes, and we'll come back with a quote. If what we find on the day doesn't match your photos, we'll agree any change with you before we start, and you can cancel instead.

  • F-Gas certified: Refcom REF1023722, Kinergy Solutions Ltd
  • 20+ years in the trade

Availability: made to order. We'll confirm availability and your delivery date within 2 working days of your order, before we order your kit; we'll agree a fitting date with you after you accept the quote.

How buying with installation works  ·  Get a quote from photos

The Silent+ version of Aspen's orange mini pump, built on its 5th generation capacitance sensing and rotary diaphragm. Flow adapts to demand and it is quiet enough that you should not need extra noise or vibration dampers.

  • Max flow: 35 L/h
  • Max recommended head: 10 m
  • Max suction lift: 1.5 m
  • Sound level: as low as 16 dB(A) (Aspen figure)
  • Suits units up to 40 kW (136,000 Btu/h): ducted, floor standing, chassis and high wall splits
  • Power: 100 to 250 VAC, 0.18 A, 2.4 W, 50/60 Hz
  • 1.5 m Plug & Play cable (not backwards compatible)
  • Safety switch: 5.0 A normally closed
  • Rated: continuous; self-priming
  • Inlet 16 mm, outlet 6 mm
  • IP24, Class II
  • Max water and ambient temperature: 40 °C
  • Manufacturer warranty: 3 years

In the box: Silent+ Mini Orange Gen 5 pump, reservoir (with filter and lid), 1.5 m Plug & Play cable, 1.5 m clear PVC tube, 150 mm clear vent hose, 220 mm inlet hose, drain connector kit (straight connector and rubber elbow) and quick start guide.

Made to order. Once you've ordered, we'll confirm availability and your delivery date within 2 working days.
