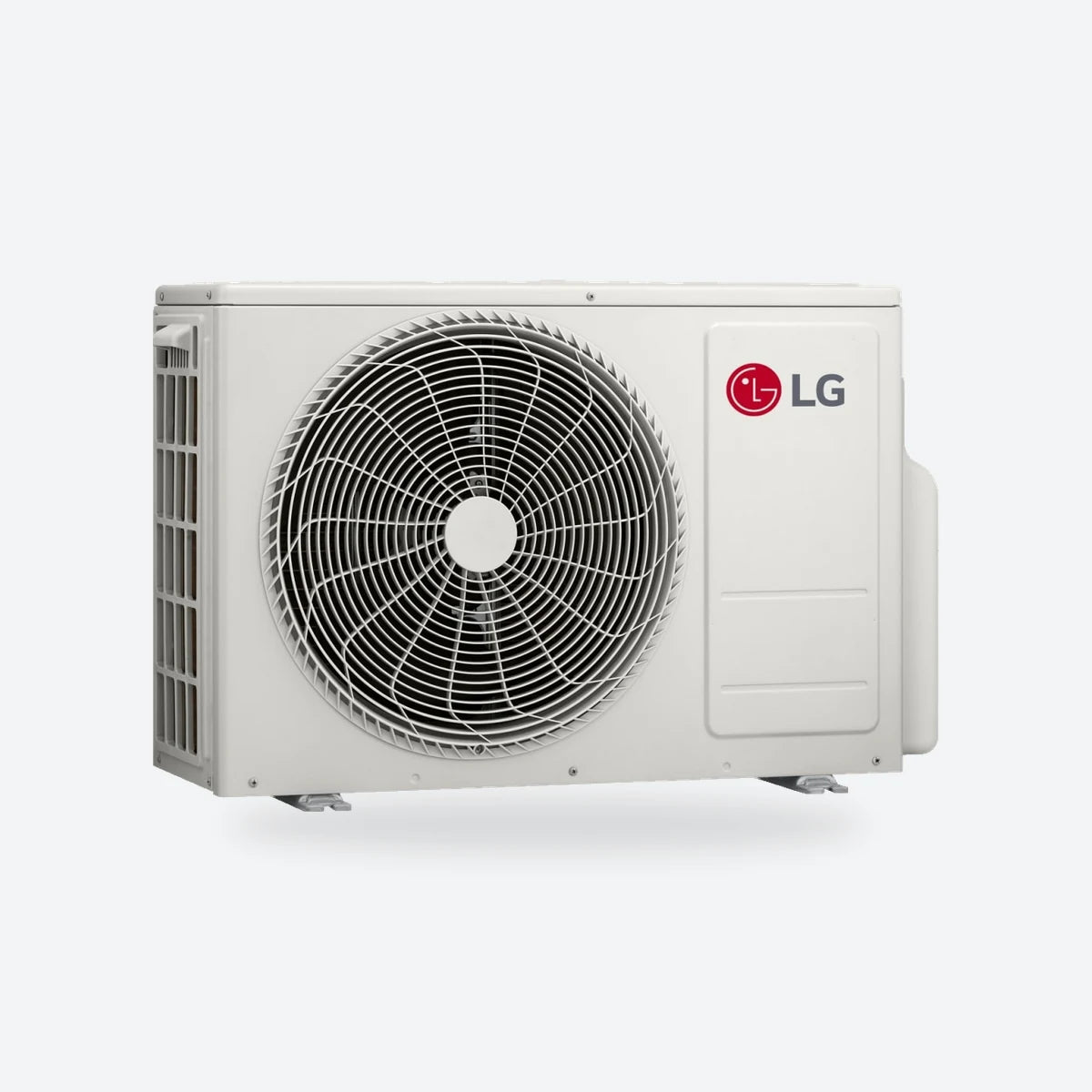

• LG Multi F 5-room multi-split outdoor unit MU5R30 on a light grey square.

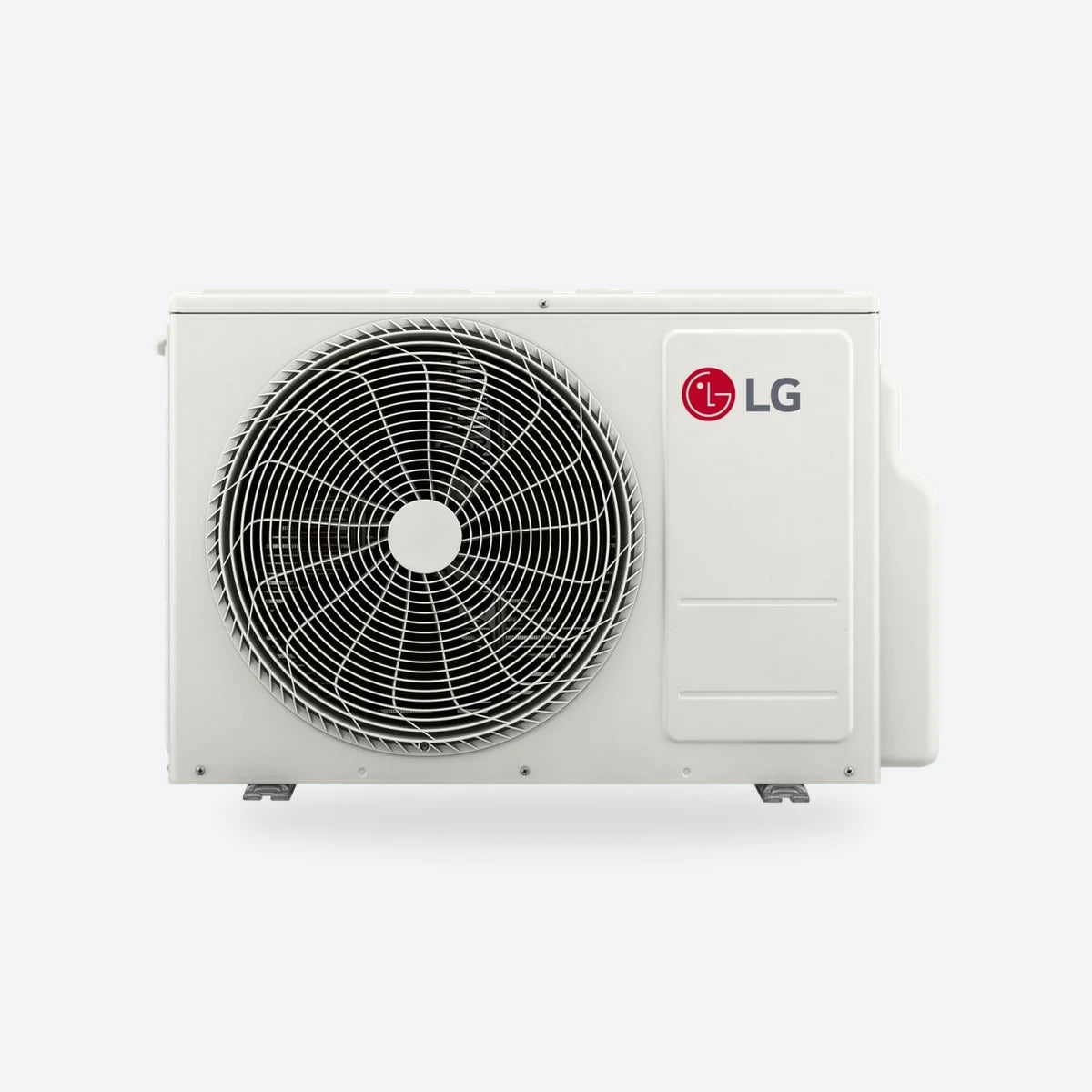

  • LG Multi F MU5R30 outdoor unit in white, front view
1 2

LG

LG Multi F 5-Room Multi-Split Air Conditioning System (MU5R30 + 5 x DUALCOOL Special E 2.5kW, 8.8 kW)

LG Multi F 5-Room Multi-Split Air Conditioning System (MU5R30 + 5 x DUALCOOL Special E 2.5kW, 8.8 kW)

£3,645.00
£3,645.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Changed your mind? You pay the return postage. Faulty, damaged or wrong items are on us.

Purchase option

Supply only. Installation not included.

Must be fitted by an F-gas certified company. After you order, we'll email a short form for your installer.

How this works

This system contains F-gas refrigerant and must be installed by an F-gas certified company. By law we can only supply it once your installer has confirmed in writing that they will fit it. After you order, we'll email you a short form for your installer to complete. We won't order or dispatch your system until we've checked it. If we don't get the form within 14 days, we'll cancel your order and refund you in full.

Get a fitted quote

Want us to fit it instead? We'll quote separately.

Fitted for you

Send us photos, a short video walk-round and your room sizes, and we'll come back with a quote. If what we find on the day doesn't match your photos, we'll agree any change with you before we start, and you can cancel instead.

  • F-Gas certified: Refcom REF1023722, Kinergy Solutions Ltd
  • 20+ years in the trade

Availability: made to order. We'll confirm availability and your delivery date within 2 working days of your order, before we order your kit; we'll agree a fitting date with you after you accept the quote.

How buying with installation works  ·  Get a quote from photos

LG Multi F 5-room multi-split system: MU5R30 with 5 DUALCOOL Special E wall units

Pre-order. We'll confirm availability and your delivery date within 2 working days, before we order your kit. If the date doesn't suit you, we'll refund you in full.

Equipment pack for 5 rooms from one outdoor unit. The LG MU5R30.U40 outdoor unit is rated at 8.8 kW nominal cooling and runs up to 5 indoor units on R32 refrigerant. This pack pairs it with 5 DUALCOOL Special E EZ09CYN.CSJ1 wall units, one per room. Supplied as equipment only for an F-gas certified company.

What's in the pack

  • 1 x LG MU5R30.U40 multi-split outdoor unit
  • 5 x LG DUALCOOL Special E EZ09CYN.CSJ1 wall-mounted indoor unit

The indoor units add up to more than 8.8 kW. That's normal for multi-split: the outdoor unit shares its output across the rooms that are running, so each room's output depends on how many are on. Output per room in each combination is set out in LG's combination table.

Key features

  • One outdoor unit runs every room in the pack, each room with its own control
  • DUALCOOL Special E wall units with LG ThinQ app control
  • Twin rotary compressor in the outdoor unit
  • Heating and cooling from an inverter heat pump
  • R32 refrigerant

Specifications

Outdoor unit MU5R30.U40 (5 ports)
Indoor units 5 x EZ09CYN.CSJ1 DUALCOOL Special E wall units
Cooling capacity, outdoor unit (nominal) 8.8 kW (range 1.3 to 10.6 kW)
Heating capacity, outdoor unit (nominal) 10.1 kW (range 1.5 to 12.1 kW)
Maximum heating capacity at -7°C (outdoor unit) 7.1 kW
EER / COP (outdoor unit, rated) 4.40 / 4.70
SEER / energy class (cooling) 8.20 / A++
SCOP / energy class (heating) 4.20 / A+
Outdoor sound pressure (cooling / heating) 50 / 54 dB(A)
Outdoor sound power (cooling, max) 66 dB(A)
Refrigerant R32, 2.6 kg (1.755 t CO2e) factory charge
Outdoor unit dimensions (W x H x D) 950 x 834 x 330 mm
Outdoor unit weight 61 kg
Pipe lengths Up to 75 m total, 25 m to any one indoor unit
Maximum height difference 15 m outdoor to indoor; 7.5 m between indoor units
Pipe connections 5 x 6.35 mm liquid, 5 x 9.52 mm gas
Outdoor operating range Cooling -10°C to +48°C; heating -18°C to +18°C (wet bulb)
Power supply Single phase, 220-240 V, 50 Hz (breaker 25 A)

Outdoor unit specifications from LG's R32 multi-split specifications leaflet. Capacities to EN14511 with 7.5 m interconnecting pipe; LG notes figures depend on the indoor unit combination (see LG's combination table) and at least two indoor units must be connected. LG may ship this outdoor unit under a newer suffix; we'll confirm the exact code with your delivery date.

Two ways to buy

  • Supply only: UK-wide, made to order, and we'll confirm availability and your delivery date within 2 working days, before we order your kit. Equipment only; installation isn't included in this checkout. Want it fitted? Email sales@climatecart.co.uk with your room sizes and a few photos for an installed price, anywhere in the UK. Your fitted quote includes travel. Equipment is supplied for your F-gas certified company.
  • Fitted: We can arrange fitting anywhere in the UK. You do not pay for installation at checkout.

F-Gas certified company, Kinergy Solutions Ltd, Refcom REF1023722

Lead time: we'll confirm availability and your delivery date within 2 working days of your order, before we order your kit. If that date doesn't work for you, we'll refund you in full.

For availability and sizing, email sales@climatecart.co.uk or WhatsApp 07427 342975.

Supply-only scope

This listing is for the equipment described above. Installation, commissioning, pipework, electrical work and other sundries are not included unless explicitly stated in the listing title or kit notes. Split systems must be installed and commissioned by an F-gas certified company.

Manufacturer warranty: terms are set by LG and can depend on the installer and on registering the product. Please confirm cover with your installer, or ask us before ordering.
