Panasonic BZ 5.0kW wall split system
Pre-order. We'll confirm availability and your delivery date within 2 working days, before we order your kit. If the date doesn't suit you, we'll refund you in full.

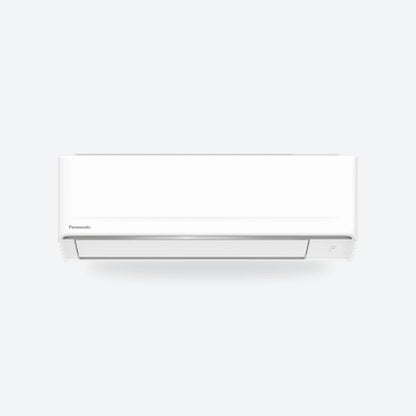

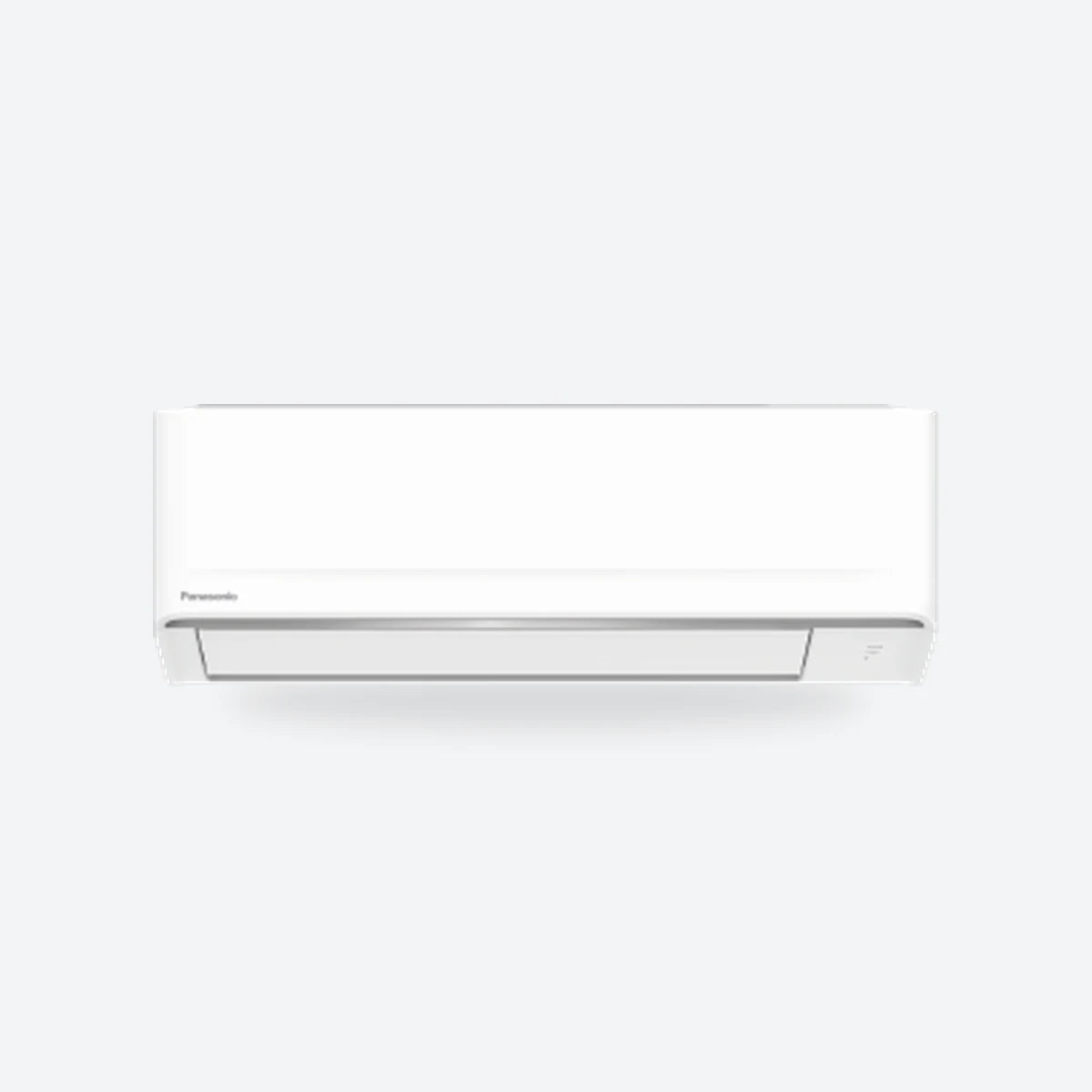

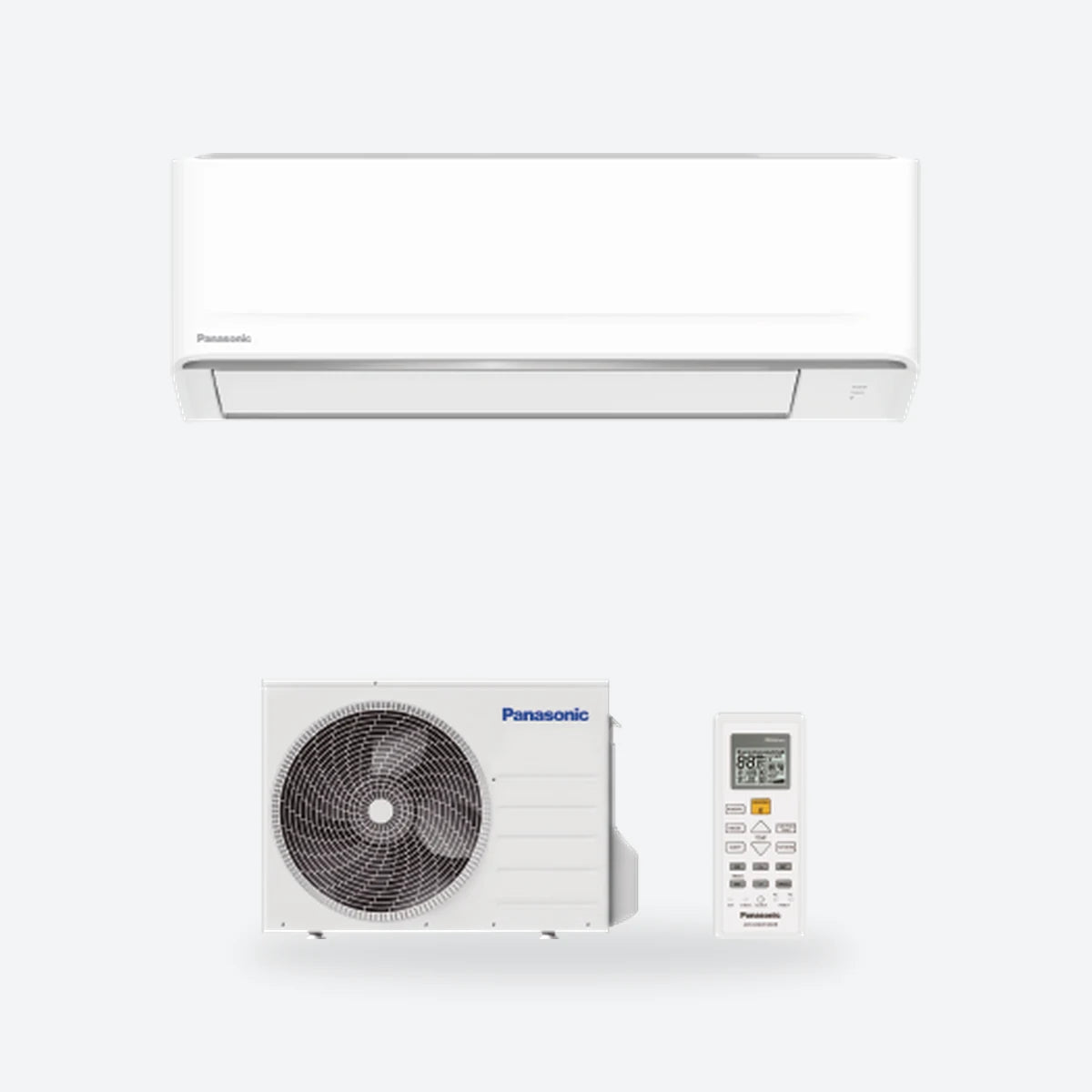

Complete equipment kit for one room: a Panasonic CS-BZ50CKE wall-mounted indoor unit and the matching CU-BZ50CKE outdoor unit (Panasonic kit KIT-BZ50-CKE), using R32 refrigerant. The BZ is Panasonic's super-compact wall-mounted range, just 765 mm wide, with built-in Wi-Fi and a PM2.5 filter. Supplied as equipment only for an F-gas certified company.
Key features
- Super-compact indoor unit, only 765 mm wide
- PM2.5 filter for cleaner indoor air
- Built-in Wi-Fi for control through the Panasonic Comfort Cloud app
- Works with Google Home and Alexa
- Aerowings for better airflow comfort
- Quiet operation from 20 dB(A) (indoor, quiet mode, cooling)
- Cooling even at -10°C outdoors
- Heating and cooling from one heat pump system
Specifications
| Indoor unit | CS-BZ50CKE |
|---|---|
| Outdoor unit | CU-BZ50CKE |
| Kit code | KIT-BZ50-CKE |
| Cooling capacity (nominal) | 5 kW (range 0.98 to 5.4 kW) |
| Heating capacity (nominal) | 5.4 kW (range 0.98 to 7.5 kW) |
| Heating capacity at -7°C | 4.62 kW |
| EER / COP (nominal) | 3.03 / 3.42 |
| SEER / energy class (cooling) | 6.60 / A++ |
| SCOP / energy class (heating) | 4.20 / A+ |
| Indoor sound pressure, cooling (quiet / low / high) | 34 / 37 / 44 dB(A) |
| Indoor sound pressure, heating (quiet / low / high) | 34 / 37 / 44 dB(A) |
| Outdoor sound pressure (cooling / heating, high) | 48 / 49 dB(A) |
| Refrigerant | R32, 1.03 kg (0.70 t CO2e) |
| Indoor unit dimensions (H x W x D) | 290 x 765 x 214 mm |
| Indoor unit weight | 9 kg |
| Outdoor unit dimensions (H x W x D) | 619 x 824 x 299 mm (add 70 mm for the piping port) |
| Outdoor unit weight | 35 kg |
| Pipe sizes (gas / liquid) | 12.70 mm (1/2in) / 6.35 mm (1/4in) |
| Pipe length range / height difference | 3 to 15 m / 15 m |
| Outdoor operating range | Cooling -10°C to +43°C; heating -15°C to +24°C |
| Power supply | 230 V (indoor unit) |
| Wi-Fi | Built in (Panasonic Comfort Cloud app) |
Specifications from Panasonic's UK product page for kit KIT-BZ50-CKE. EER and COP to EN14511; energy label scale A+++ to D. Sound pressure measured to JIS C 9612 (Panasonic); quiet is Panasonic's Q-Lo quiet mode.
Two ways to buy
- Supply only: UK-wide, made to order, and we'll confirm availability and your delivery date within 2 working days, before we order your kit. Equipment only; installation isn't included in this checkout. Want it fitted? Email sales@climatecart.co.uk with your room sizes and a few photos for an installed price, anywhere in the UK. Your fitted quote includes travel. Equipment is supplied for your F-gas certified company.
- Fitted: We can arrange fitting anywhere in the UK. You do not pay for installation at checkout.
F-Gas certified company, Kinergy Solutions Ltd, Refcom REF1023722
Lead time: we'll confirm availability and your delivery date within 2 working days of your order, before we order your kit. If that date doesn't work for you, we'll refund you in full.
For availability and sizing, email sales@climatecart.co.uk or WhatsApp 07427 342975.
Supply-only scope
This listing is for the equipment described above. Installation, commissioning, pipework, electrical work and other sundries are not included unless explicitly stated in the listing title or kit notes. Split systems must be installed and commissioned by an F-gas certified company.
Manufacturer warranty: terms are set by Panasonic and can depend on the installer and on registering the product. Please confirm cover with your installer, or ask us before ordering.
