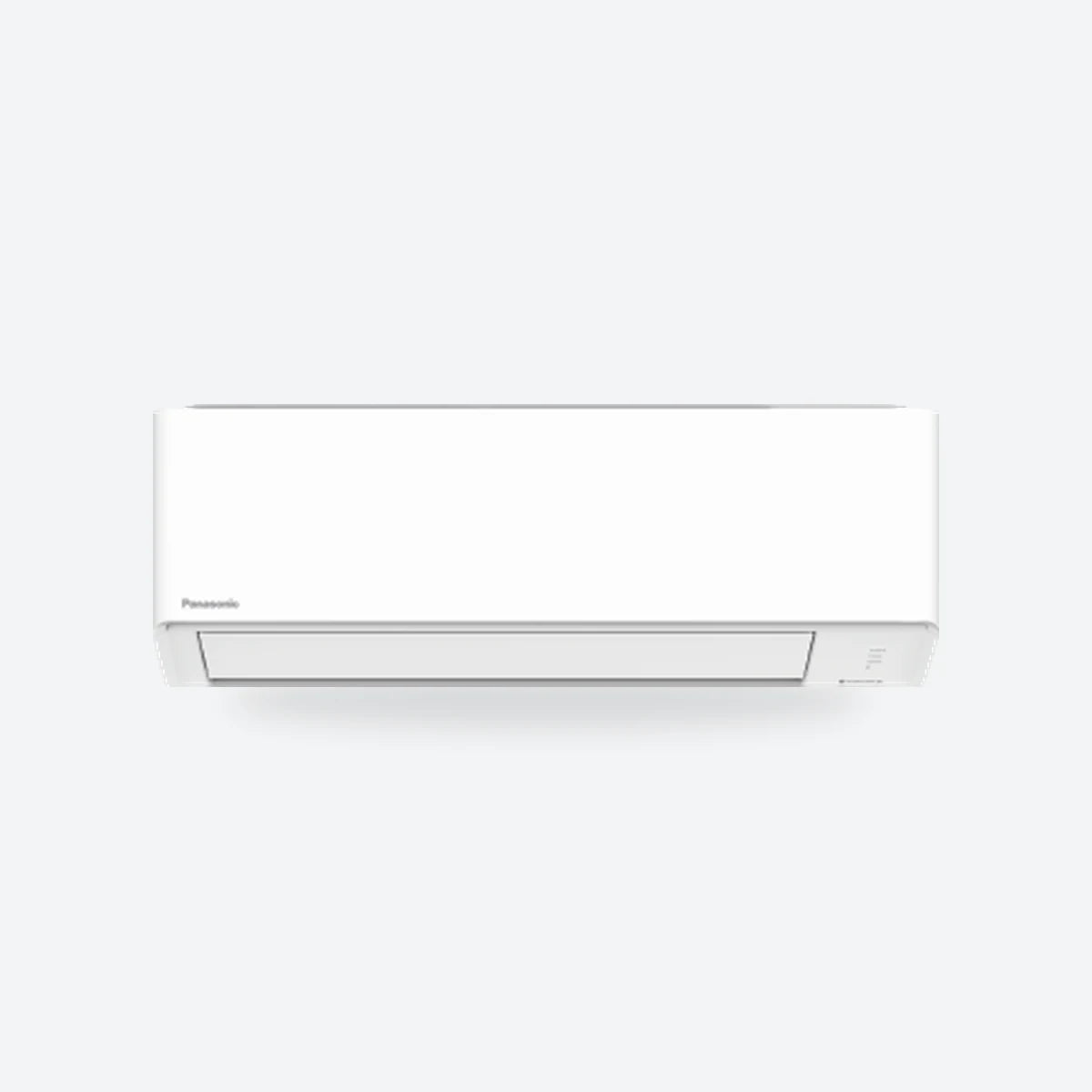

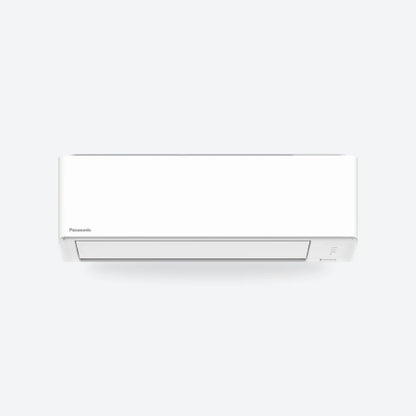

• Panasonic TZ compact wall-mounted air conditioning indoor unit in white, seen from the front.

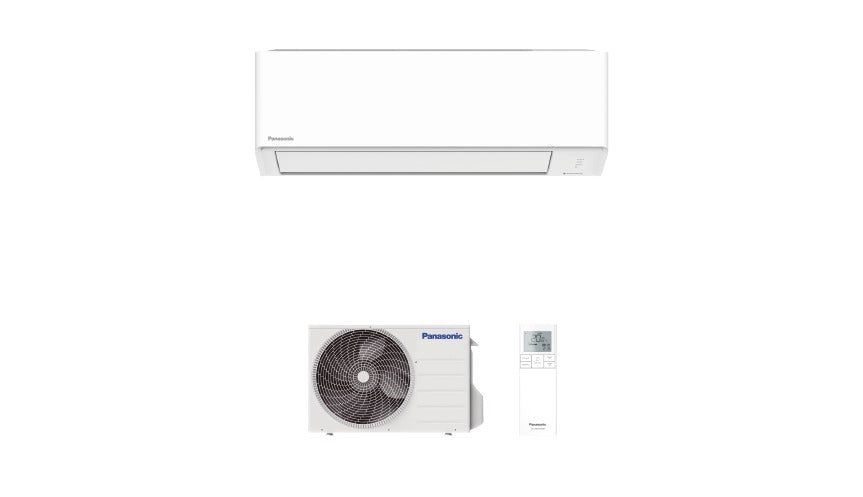

  • Panasonic TZ 3.5kW Wall Split Air Conditioning System in white
1 2

Panasonic

Panasonic TZ 3.5kW Wall Split Air Conditioning System

Panasonic TZ 3.5kW Wall Split Air Conditioning System

£1,010.00
£1,010.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Changed your mind? You pay the return postage. Faulty, damaged or wrong items are on us.

Purchase option

Supply only. Installation not included.

Must be fitted by an F-gas certified company. After you order, we'll email a short form for your installer.

How this works

This system contains F-gas refrigerant and must be installed by an F-gas certified company. By law we can only supply it once your installer has confirmed in writing that they will fit it. After you order, we'll email you a short form for your installer to complete. We won't order or dispatch your system until we've checked it. If we don't get the form within 14 days, we'll cancel your order and refund you in full.

Get a fitted quote

Want us to fit it instead? We'll quote separately.

Fitted for you

Send us photos, a short video walk-round and your room sizes, and we'll come back with a quote. If what we find on the day doesn't match your photos, we'll agree any change with you before we start, and you can cancel instead.

  • F-Gas certified: Refcom REF1023722, Kinergy Solutions Ltd
  • 20+ years in the trade

Availability: made to order. We'll confirm availability and your delivery date within 2 working days of your order, before we order your kit; we'll agree a fitting date with you after you accept the quote.

How buying with installation works  ·  Get a quote from photos

Panasonic TZ 3.5kW wall split system

Pre-order. We'll confirm availability and your delivery date within 2 working days, before we order your kit. If the date doesn't suit you, we'll refund you in full.

Complete equipment kit for one room: a Panasonic CS-TZ35CKEW wall-mounted indoor unit and the matching CU-TZ35CKE outdoor unit (Panasonic kit KIT-TZ35-CKE), using R32 refrigerant. The TZ is Panasonic's super-compact wall-mounted range with nanoe X air treatment and built-in Wi-Fi, just 765 mm wide. Supplied as equipment only for an F-gas certified company.

Key features

  • nanoe X (Generator Mark 2) air treatment, which can run with heating and cooling off; maintenance-free, no filters to replace
  • Super-compact indoor unit, just 765 mm wide, ideal for tight spaces such as above doors
  • Built-in Wi-Fi for control through the Panasonic Comfort Cloud app
  • Works with Google Home and Alexa
  • Aerowings for better airflow comfort
  • Quiet operation, as low as 20 dB(A)
  • Heating and cooling from one heat pump system

Specifications

Indoor unit CS-TZ35CKEW
Outdoor unit CU-TZ35CKE
Kit code KIT-TZ35-CKE
Cooling capacity (nominal) 3.50 kW (range 0.85 to 4.00 kW)
Heating capacity (nominal) 4.00 kW (range 0.80 to 5.10 kW)
Heating capacity at -7°C 3.30 kW
EER / COP (nominal) 3.57 / 4.04
SEER / energy class (cooling) 7.30 / A++
SCOP / energy class (heating) 4.60 / A++
Indoor sound pressure, cooling (quiet / low / high) 20 / 30 / 42 dB(A)
Indoor sound pressure, heating (quiet / low / high) 21 / 33 / 42 dB(A)
Outdoor sound pressure (cooling / heating, high) 48 / 50 dB(A)
Refrigerant R32, 0.68 kg (0.46 t CO2e)
Indoor unit dimensions (H x W x D) 290 x 765 x 214 mm
Indoor unit weight 9 kg
Outdoor unit dimensions (H x W x D) 542 x 780 x 289 mm (add 70 mm for the piping port)
Outdoor unit weight 30 kg
Pipe sizes (gas / liquid) 9.52 mm (3/8in) / 6.35 mm (1/4in)
Pipe length range / height difference 3 to 15 m / 15 m
Outdoor operating range Cooling -10°C to ++43°C; heating -15°C to ++24°C
Power supply 230 V (indoor unit)
Wi-Fi Built in (Panasonic Comfort Cloud app)

Specifications from Panasonic's UK product page for kit KIT-TZ35-CKE. EER and COP to EN14511; energy label scale A+++ to D. Sound pressure measured to JIS C 9612 (Panasonic); quiet is Panasonic's Q-Lo quiet mode.

Two ways to buy

  • Supply only: UK-wide, made to order, and we'll confirm availability and your delivery date within 2 working days, before we order your kit. Equipment only; installation isn't included in this checkout. Want it fitted? Email sales@climatecart.co.uk with your room sizes and a few photos for an installed price, anywhere in the UK. Your fitted quote includes travel. Equipment is supplied for your F-gas certified company.
  • Fitted: We can arrange fitting anywhere in the UK. You do not pay for installation at checkout.

F-Gas certified company, Kinergy Solutions Ltd, Refcom REF1023722

Lead time: we'll confirm availability and your delivery date within 2 working days of your order, before we order your kit. If that date doesn't work for you, we'll refund you in full.

For availability and sizing, email sales@climatecart.co.uk or WhatsApp 07427 342975.

Supply-only scope

This listing is for the equipment described above. Installation, commissioning, pipework, electrical work and other sundries are not included unless explicitly stated in the listing title or kit notes. Split systems must be installed and commissioned by an F-gas certified company.

Manufacturer warranty: terms are set by Panasonic and can depend on the installer and on registering the product. Please confirm cover with your installer, or ask us before ordering.
